'A' Range Magnets
A-10060DS
UNMONITORED DOUBLE STANDARD MAGNET WITH DOOR STATUS
Operating voltage 12~24Vdc (Selectable) Aluminium housing Holding force up…
A-10040DS
MONITORED DOUBLE STANDARD MAGNET WITH DOOR STATUS
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 2 x 1200lbs (544Kg)
- Electro-less nickel plated armature
- Status LED: RED and GREEN
- Door status: An independent contact that works separately from the magnet to show door status not lock status
A10020M
MONITORED STANDARD MAGNET
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
- Status LED: Red and Green

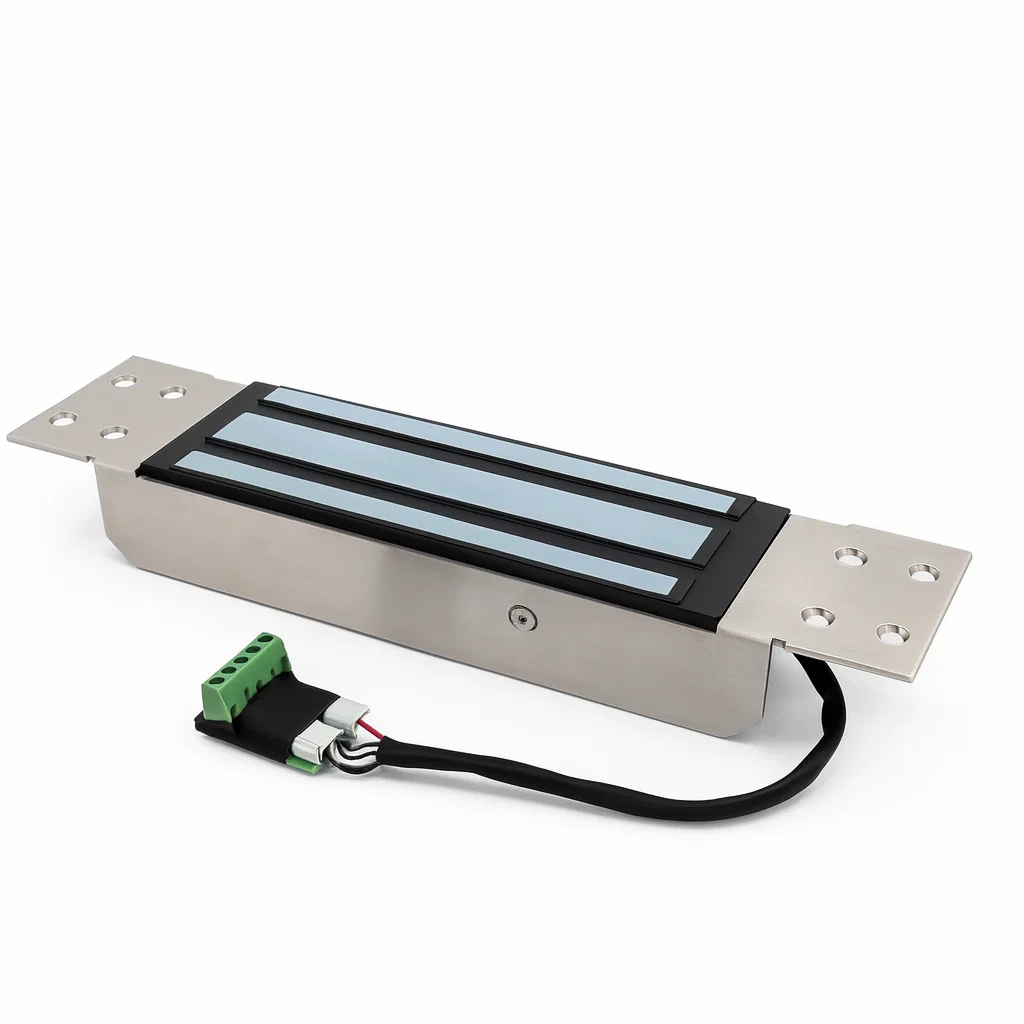

A500M
MORTICE MONITORED STANDARD MAGNET
- Operating voltage 12~24Vdc (Selectable)
- Stainless Steel Housing
- Electro-less nickel plated armature
- Holding force up to 1,200lbs (545Kg)
A-10020G
MONITORED STANDARD MAGNET IN GOLD FINISH
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Electro-less nickel plated armature
- Holding force up to 1,200lbs (545Kg)
- Status LED: RED and GREEN
A-10020DS
MONITORED STANDARD MAGNET WITH DOOR STATUS
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Electro-less nickel plated armature
- Holding force up to 1,200lbs (545Kg)
- Door status: An independent contact that works separately from the magnet to show door status not lock status
A-10010DS
UNMONITORED STANDARD MAGNET WITH DOOR STATUS
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Electro-less nickel plated armature
- Holding force up to 1,200lbs (545Kg)
- Door status: An independent contact that works separately from the magnet to show door status not lock status
FR-A10005DS
FIRE RATED MONITORED DOUBLE MINI MAGNET WITH DOOR STATUS
Operating voltage 12~24Vdc (Selectable) Aluminium housing Fail-Safe (Power to Lock) Holding…
FR-A10004DS
FIRE RATED UNMONITORED DOUBLE MINI MAGNET WITH DOOR STATUS
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Fail-Safe (Power to Lock)
- Holding force up to 600lbs x 2 (272Kg x 2)
- Electro-less Nickel Plated Armature
Fire tested: BS EN1634:1
FR-A10002DS
FIRE RATED MONITORED MINI MAGNET WITH DOOR STATUS
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Safety bolts fitted
- Fire tested: BS EN1634:1
FR-A10001DS
FIRE RATED UNMONITORED MINI MAGNET WITH DOOR STATUS
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Unmonitored
- Fire tested: BS EN1634:1
- Electro-less Nickel Plated Armature
A-10005DS
MONITORED DOUBLE MINI MAGNET WITH DOOR STATUS
- Operating voltage 12~24Vdc
- Aluminium housing
- Holding force up to 600lbs x 2 (272Kg x 2)
- Status LED: RED and GREEN
